Place of Origin:
Shanghai, China
Hàng hiệu:
Tianfeng
Chứng nhận:
CE/ISO
Model Number:
ZP-23 ZP-25 ZP-27
Băng hình
Băng hình
Main Application

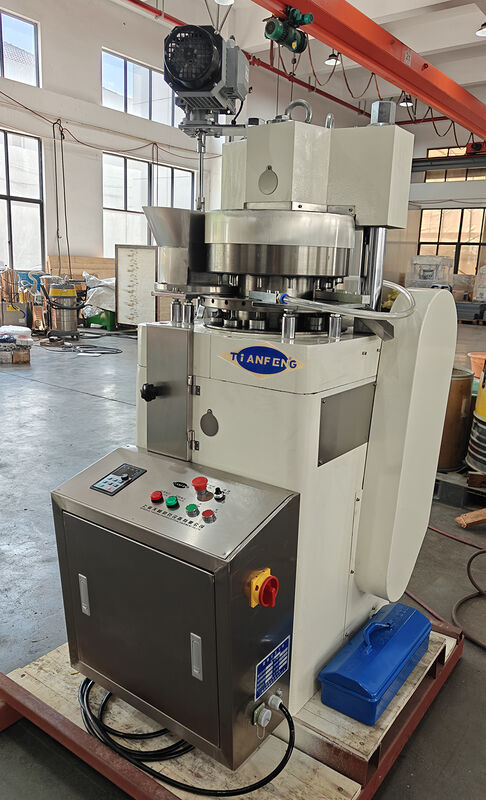

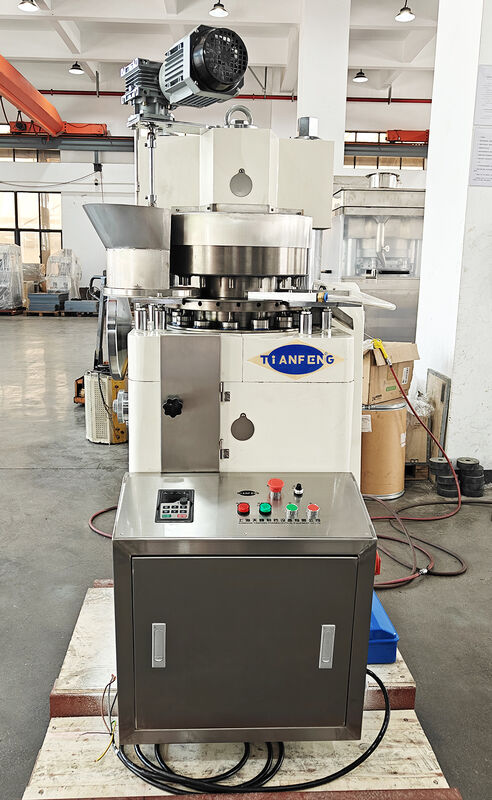

This rotary tablet press has a wide scope of application, including:
Industries: Pharmaceutical, food, chemical, ceramic, electronic, and battery industries

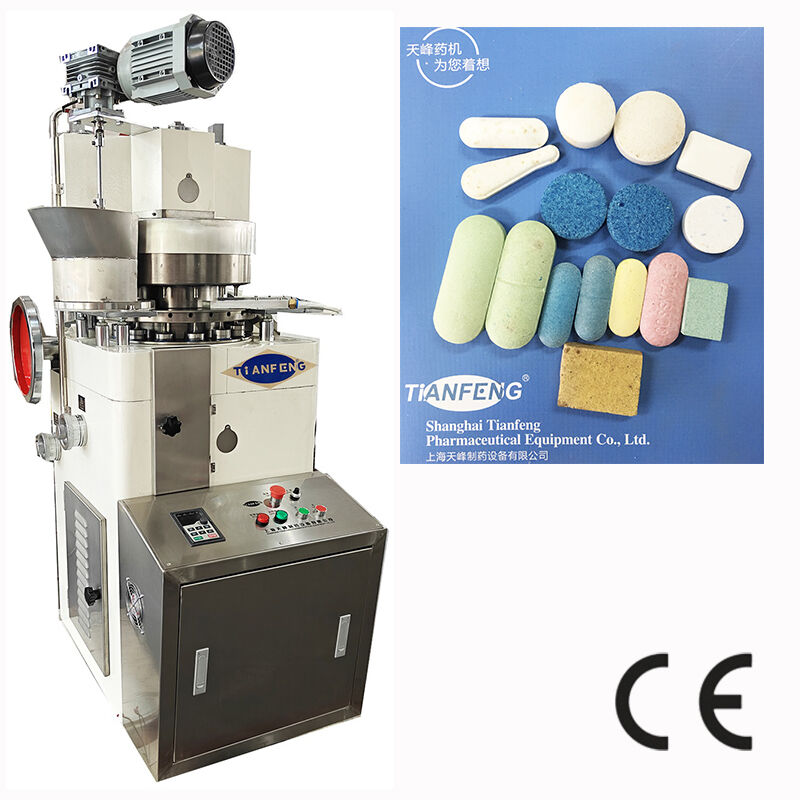

Specific products: Watercolor tablets, disinfection tablets, camphor tablets, bath salts tablets
Function: Pressing various kinds of granular materials into tablets
Key Features
|
Feature |
Description |
|---|---|
|
Easy maintenance |
Transparent window allows easy observation of machine operation |
|
Versatile shaping |
Can press round tablets or other special-shaped tablets |
|
Adjustable speed |
Speed can be adjusted as needed |
|
Enclosed design |
Can be enclosed with organic glass and stainless steel |
|
Overload protection |
Mechanical buffer unit prevents punches and apparatus from overload damage |
|
High pressure |
Pressure exceeds 10T, enabling large tablet production |
Technique Parameter of ZP13 15 17 19 21B Rotary Press Machine
|
Model |
ZP13A | ZP15A | ZP17A | ZP19A | ZP21A |
| Max. Pressure (KN) | 150 | 150 | 120 | 120 | 80 |
| Max. dia. of Tablet (mm) | 50 | 45 | 40 | 30 | 30 |
| Max. Depth of filling(mm) | 18-25 | 18-25 | 18-25 | 18-25 | 18 |
| Thickness of largest tablet (mm) | 8-15 | 8-15 | 8-15 | 8-15 | 9 |
| Turret speed (r/min) | 10-25 | 10-25 | 10-25 | 10-25 | 10-36 |
| Length of the upper shank(mm) | 175 | 175 | 175 | 175 | 175 |
| Length of the lower shank(mm) | 180 | 180 | 180 | 180 | 180 |
| Production Capacity (pc/h) | 7800-19500 | 9000-23000 | 10200-25500 | 11400-28500 | 45000 |
| Motor Power (KW) | 7.5KW 6Pole | 7.5KW 6Pole | 7.5KW 6Pole | 7.5KW 6Pole | 3KW |
| Overall dimensions (mm) | 900*800*1640 | 900*800*1640 | 900*800*1640 | 900*800*1640 | 900*800*1640 |
| Net weight (KG) | 1500 | 1500 | 1500 | 1500 | 1500 |
Our Rotary Tablet Press Machine is designed to provide reliable and efficient tablet production for various industries. To ensure optimal performance and longevity of your machine, we offer comprehensive technical support and services.
Our technical support team is available to assist you with installation, operation, troubleshooting, and maintenance of the Rotary Tablet Press Machine. We provide detailed user manuals and training sessions to help your staff operate the machine safely and effectively.
We also offer preventive maintenance services to keep your equipment running smoothly and to minimize downtime. Regular inspections, parts replacement, and calibration are conducted by our certified technicians.
In addition, we supply genuine spare parts and accessories to ensure compatibility and durability. Our service packages can be customized according to your production requirements and budget.
For any technical inquiries or service requests, please reach out to our support team. We are committed to providing prompt and professional assistance to maximize your productivity and satisfaction with the Rotary Tablet Press Machine.
Product Packaging:
The Rotary Tablet Press Machine is carefully packed to ensure safe delivery and to protect the equipment from damage during transit. The machine is first covered with anti-rust oil and wrapped with protective film. It is then secured in a sturdy wooden crate or plywood case, reinforced with cushioning materials such as foam or bubble wrap to absorb shocks. All loose parts and accessories are packed separately in labeled boxes within the crate. The packaging is designed to withstand rough handling and environmental factors, ensuring the product arrives in perfect working condition.
Shipping:
We offer reliable and timely shipping options for the Rotary Tablet Press Machine worldwide. The shipment is typically done via sea freight for large orders and air freight for urgent or smaller shipments. Prior to dispatch, all necessary documentation including commercial invoice, packing list, and certificate of origin (if required) are prepared. The machine is carefully loaded and secured to prevent movement during transportation. Customers are provided with tracking information to monitor the shipment status. We also assist with customs clearance to facilitate smooth delivery to your destination.
Q1: What are the available models for the Tianfeng Rotary Tablet Press Machine?
A1: The available models for the Tianfeng Rotary Tablet Press Machine are ZP13A, ZP15A, ZP17A,ZP19A and ZP21A.
Q2: Is the Tianfeng Rotary Tablet Press Machine certified?
A2: Yes, the machine is certified with CE and ISO certifications.
Q3: What is the minimum order quantity and the price range for this tablet press machine?
A3: The minimum order quantity is 1 unit, and the price welcome to consult.
Q4: What are the accepted payment terms for purchasing the Tianfeng Rotary Tablet Press Machine?
A4: Payment can be made via L/C, T/T, or Western Union.
Q5: What is the supply ability and delivery time for this product?
A5: Tianfeng can supply 50 units per month, and the delivery time is approximately 25-30 working days.
Q6: How is the Tianfeng Rotary Tablet Press Machine packaged for shipment?
A6: The machine is packed in export wooden cases or plywood cases to ensure safe delivery.
