Name: Advanced Rotary Tablet Press Machine for Smooth and Precise Tablet Production
Brand: Shanghai Tianfeng Pharmaceutical Equipment Co., Ltd.
SKU: ZP45A ZP41F
Price: 21,725.00 USD
Availability: InStock

Nhà > các sản phẩm > Máy ép viên nén >

Advanced Rotary Tablet Press Machine for Smooth and Precise Tablet Production

Place of Origin:

Shanghai, China

Hàng hiệu:

Tianfeng

Chứng nhận:

CE/ISO

Số mô hình:

ZP45A ZP41F

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Chi tiết sản phẩm

Đầu ra máy tính bảng tối đa:

243000 chiếc / giờ

Áp suất máy tính bảng tối đa:

100 kN

Công suất động cơ:

7,5kw

loại cú đấm:

Dụng cụ ZP

Kiểm soát chất lượng:

Kiểm tra trước khi giao hàng

Trọng lượng mạng máy:

1980kg

chết số:

45/41

Thành phần cốt lõi:

Vòng bi, Động cơ, PLC

Kích thước máy:

1220*930*1670mm

đường kính sản phẩm:

Tối đa 18mm

Điều khoản thanh toán và vận chuyển

Minimum Order Quantity

1 unit

Giá bán

Welcome to consult

Packaging Details

export wooden case/ plywood case

Thời gian giao hàng

25-30 ngày làm việc

Payment Terms

L/C, T/T, Western Union

Supply Ability

50 units/month

Sản phẩm liên quan

Băng hình

Máy ép viên xoay bột 380V nhanh và chính xác ZPW15D ZPW17D để sản xuất viên nén cỡ lớn

Nhận giá tốt nhất

Băng hình

ZPW4 Biscuit Press Machine Rotary Tablet Press with 3840PC/H Capacity 2000kg Weight and 12409201710mm Dimensions

Nhận giá tốt nhất

Băng hình

ZPE9 EU D Máy Press Tablet Rotary 12600pcs/Hour 2,2KW

Nhận giá tốt nhất

Băng hình

Zp17e Smallest 2 Layers Rotary Tablet Press Machine with 30600PC/H Capacity and 9006501800mm Dimensions

Nhận giá tốt nhất

Liên hệ với chúng tôi

+86 13524985109

chenyang@shtf.cn

86-21-57664559

Liên hệ ngay bây giờ

Mô tả sản phẩm

Features:

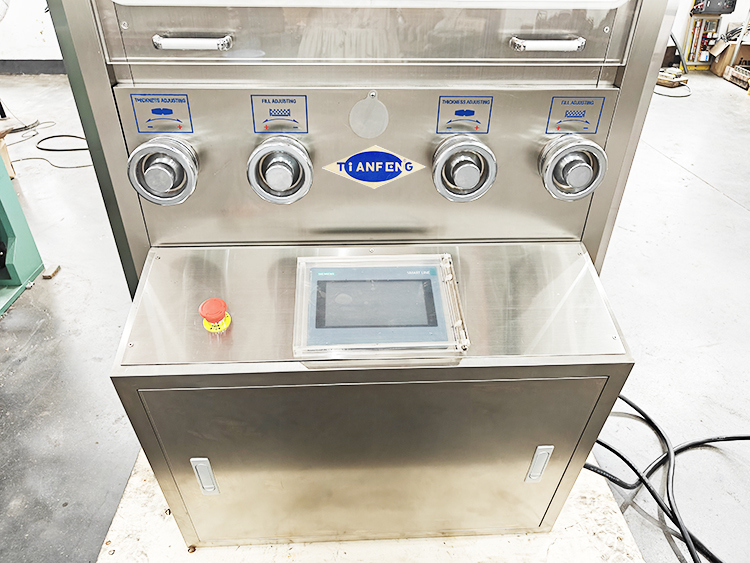

User-Friendly Operation: Supports button-type frequency conversion speed control and PLC touch screen control (optional), meeting different levels of operational needs.

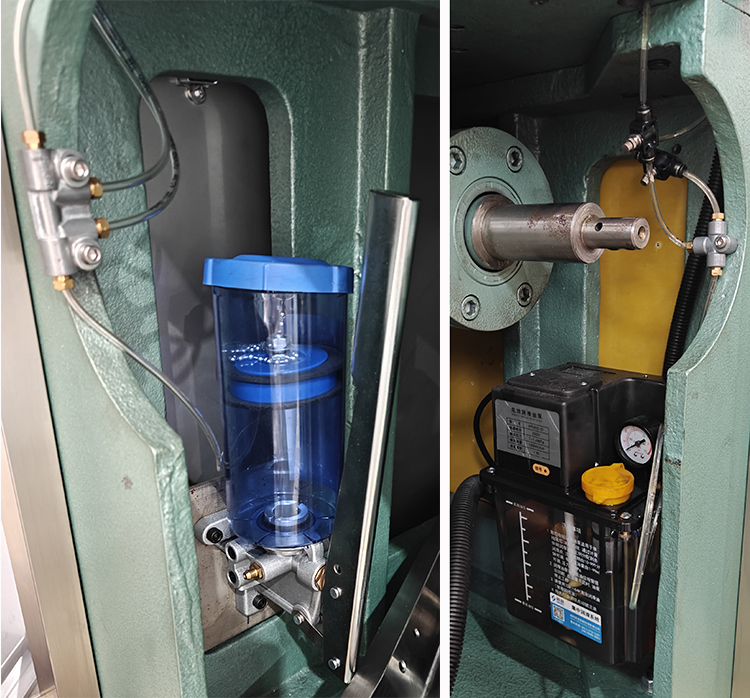

Efficient Lubrication: Equipped with an automatic oil lubrication system. The grease lubrication system is semi-automatic and requires manual pressing.
Superior Material: The standard rotary table middle mould plate is made of high-strength OT-500-7 material. Corrosion-resistant 2Cr13 stainless steel material is available as an option.
Stable Operation: The upper track adopts a high-strength, wear-resistant dual-track design. The parallel rails are fully enclosed and equipped with anti-breakage and anti-drop punch plates, offering good rigidity and excellent dust prevention.
Contamination Prevention Design: The upper punch of the mould is designed with an oil collection groove. When equipped with an oil collection ring, it effectively collects oil stains and contaminated powder, ensuring tablet cleanliness.

Technical Parameters:

Model	ZP-45A	ZP-41F
Dies (sets)	45	41
Max. Pressure (KN)	100	100
Max. dia. of tablet (mm)	13(special 16)	16(special 22)
Max. Depth of fill (mm)	15	15
Max. Thickness of largest tablet (mm)	6	6
Rotational speed of revolving table(r/min)	14-45	14-45
Max. Capacity(pcs/h)	243000	221400
Diameter of rotary table (mm)	460	460
Diameter of middle bmould (mm)	26	30
Length of up and low punch pole (mm)	22	22
Length of the lower punch pole(mm)	115	115
Dimension (LWH)(mm)	910x1220x1670	910x1220x1670
Motor(KW)	7.5kW 4L	7.5kW 4L
Net Weight	1950	1950

Support and Services:

Our Product Technical Support and Services for the Rotary Tablet Press Machine include:

- Installation guidance and support

- Operational training for machine operators

- Maintenance services to ensure optimal performance

- Troubleshooting assistance for any technical issues

- Upgrades and enhancements to keep the machine up-to-date

Packing and Shipping:

Product Packaging and Shipping for the Rotary Tablet Press Machine:

The Rotary Tablet Press Machine is carefully packaged to ensure safe delivery. It is securely wrapped in protective materials to prevent any damage during transportation.

For shipping, we partner with reliable carriers to deliver the Rotary Tablet Press Machine to your location promptly and safely. The product will be shipped with proper handling instructions to ensure its integrity upon arrival.

FAQ:

Q: What is the brand name of the Rotary Tablet Press Machine?

A: The brand name of the Rotary Tablet Press Machine is Tianfeng.

Q: What are the available models for the Rotary Tablet Press Machine?

A: The available models for the Rotary Tablet Press Machine are ZP45A and ZP41F.

Q: Where is the Rotary Tablet Press Machine manufactured?

A: The Rotary Tablet Press Machine is manufactured in Shanghai, China.

Q: What is the minimum order quantity for the Rotary Tablet Press Machine?

A: The minimum order quantity for the Rotary Tablet Press Machine is 1 unit.

Q: What are the accepted payment terms for purchasing the Rotary Tablet Press Machine?

A: The accepted payment terms for purchasing the Rotary Tablet Press Machine are L/C, T/T, and Western Union.
